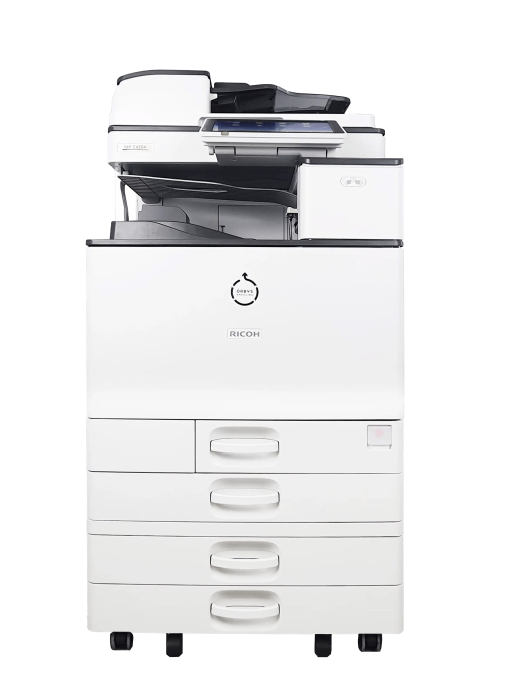

MP C3004(A)SP/MP C3504(A)SP/MP C4504(A)SP/MP C5504(A)SP/MP C6004SP
General Specifications Printing Process 4-Drum Method Output Speed MP C4504: 45-ppm B&W & FC (LTR) (Copy/Print) MP C6004: 60-ppm B&W & FC (LTR) Warm-Up Time 24 seconds Recovery from Approximately 1.0 second (motion- Sleep Mode sensor activated) First Copy Time MP C4504: 5.7/4.0 seconds (FC/B&W) MP C6004: 4.5/3.1 seconds Copy Resolution 600 dpi Quantity Indicator Up to 999 copies Single Pass Document Original Capacity: 220 sheets Feeder (SPDF) Original Size: 5.5" x 8.5" – 11" x 17" (A5 – A3) Paper Weights: Simplex: 11 – 34 lb. Bond (40 – 128 g/m2 ), Duplex: 14 – 34 lb. Bond (52 – 128 g/m2 ) Paper Capacity Standard: 2 x 550 sheets + 100-Sheet Bypass Tray, Maximum: 4,700 sheets (w/Tandem LCT + Side LCT) Supported Paper Sizes 1st Paper Tray: 8.5" x 11" (A4) 2nd Paper Tray: 5.5" x 8.5" – 12" x 18" (A6 – A3), Envelopes Bypass: Up to 12" x 18", Envelopes Custom Sizes: Width: 3.5" – 12.6" (90 – 320 mm), Length: 5.8" – 49.6" (148 – 1260 mm) Supported Paper Standard Trays: 16 – 80 lb. Bond/ Weights 166 lb. Index (60 – 300 g/m2 ) Bypass Tray: 14 – 80 lb. Bond/ 166 lb. Index (52 – 300 g/m2 ) Duplex Unit: 14 – 68 lb. Bond/ 142 lb. Index (52 – 256 g/m2 ) Paper Types Plain, Recycled, Special Paper 1 – 3, Letterhead, Cardstock, Preprinted Paper, Bond Paper, High-Gloss Coated Paper, Color Paper, Envelopes, Coated, Labels* & OHP* Auto Duplex Standard Output Capacity Standard: 500 sheets Maximum: 3,625 sheets Zoom 25% – 400% in 1% increments Dimensions (WxDxH) 26.3" x 29.1" x 47.5" (668 x 738 x 1205 mm) (Includes SPDF and Two-Tray Paper Bank) Weight 228 lbs. (103 kg) Power Requirements 120V – 127V, 60Hz, 15A Power Consumption 1,584W or less; Sleep Mode: .79W TEC Value** MP C4504: 1.8 kWh/week MP C6004: 2.8 kWh/Week *Bypass Tray Only **Typical Electricity Consumption by ENERGY STAR Qualified Imaging Equipment Test Procedure Printer Specifications (Standard) CPU Intel Atom Processor Bay Trail 1.75 GHz Memory/HDD 2 GB RAM/320GB HDD Standard & 4GB RAM/320GB HDD Option Page Description Standard: PCL5c, PCL6, PDF Languages Optional: Adobe® PostScript® 3™ , XPS, IPDS & PictBridge Font Support Standard: PCL: 45 Scalable fonts + International 13 fonts Optional: PostScript 3: 136 Roman fonts; IPDS: 108 Roman fonts Max. Print Resolution 1200 x 1200 dpi Network Interfaces Standard: 1000Base-T/100Base-TX/ 10Base-T Ethernet, USB2.0 Type A (3 Ports), SD Slot on Operation Panel Option: IEEE1284/ECP; IEEE802.11a/b/g/n; USB2.0 Type B Network Protocol TCP/IP (IPv4, IPv6) Support Network/OS Windows Vista/7/8/8.1/10/Server 2008/ Server 2008R2/ Server2012/ Server 2012R2 Unix; Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX, Citrix Presentation Server 4.5, XenApp 5.0 Mac OS X v.10.7 or later, SAP R/3, IBM iSeries AS/400-using OS/400 Host Print Transform Utilities Device Manager NX, Web Image Monitor, @Remote Document Server Specifications (Standard) Max. Stored Documents 3,000 Max. Pages/Document 2,000 Max. Page Capacity 9,000 Max. Number of Folders 200 Scanner Specifications (Standard) Scanner Resolution B&W and FC scanning at 100 – 600 dpi, Up to 1200 dpi for TWAIN scanning Scanning Speed 200/300 dpi: 110 ipm Simplex/ (B&W & Color LTR) 180 ipm Duplex Scan Area 11.7" x 17" (297 mm – 432 mm) Compression Method B&W TIFF: MH, MR, MMR, JBIG2 Color: JPEG Supported File Formats Single/Multi-Page TIFF, PDF, High Compression PDF & PDF/A, Single-Page JPEG Scan Modes Scan-to-Email (with LDAP support) Scan-to-Folder (SMB/FTP) Scan-to-URL Scan-to-Media (USB/SD Card) Network TWAIN Scanning Facsimile Specifications (Optional) Type ITU-T (CCITT) G3 Circuit PSTN, PBX Resolution 200 x 100 dpi, 200 x 200 dpi, 400 x 400 dpi (with optional SAF memory) Modem Speed 33.6K – 2,400 bps w/Auto Fallback Compression Method MH, MR, MMR, JBIG Transmission Speed G3: Approximately 2 seconds/page (JBIG) Scanning Speed Up to 81 spm Auto Dialing 2,000 Quick/Speed Dial numbers; 100 Group Dial numbers Memory Capacity (SAF) Standard: 4 MB (approx. 320 pages), Optional: 64 MB (approx. 4,800 pages) with optional SAF memory Security Features (Standard) DataOverwriteSecurity System (DOSS), HDD Encryption, User Codes, SNMP v3 Support, Encryption, Locked Print, User Authentication, 802.1x Wired Authentication, Quota Setting/Account Limit, Digitally Signed PDF, and more
